The ultimate floor tone rig
iRig Stomp I/O is a brand new type of USB pedalboard controller that integrates a professional, high-resolution, MFi certified audio interface with MIDI input/output for iPhone, iPad, Mac and PC.
It comes bundled with state-of-the-art guitar, vocal processing, and recording software for flexibility and usability, both live and in the studio.
The Neutrik® 1/4″ XLR combo jack accepts instruments and microphones including condenser mics with switchable 48V phantom power. The balanced stereo output connects to an external amp, mixer or PA, and a 1/4″ stereo headphone output is available for silent monitoring. The input gain and volume output knobs are easily accessible on the front panel, each with its dedicated LED VU-Meter indicator, for the quick-and-easy setting of levels.
Ready to rock, ready to record
iRig Stomp I/O boasts an elegant all-in-one design that perfectly highlights its flexibility and versatility. In a single piece of equipment, you now have everything you need to record in the studio, rehearse, or go out on stage and gig, without having to assemble a bulky and costly hardware setup.
With its high-quality 96kHz/24-bit audio interface, iRig Stomp I/O lets you easily record your guitar, bass or microphone – including studio condensers requiring 48VDC phantom power with true studio quality on iPhone/iPad, Mac and PC. The seamless integration with AmpliTube and VocaLive makes it as easy as plug-and-play to record on multiple devices using IK’s powerful, state of the art, 64-bit software. iRig Stomp I/O features a Class A preamp that can rival, if not surpass, the sound quality of floor processors costing up to three times as much.
The integrated headphone output allows you to monitor the signal during tracking or when practicing, while the balanced stereo outputs can be used to send the signal to an amplifier, a mixer, a PA or powered speakers.
As a floor controller, iRig Stomp I/O features an onboard expression pedal and four foot switches, allowing you to seamlessly flip through your favorite presets for natural, hands-free performance. The two optional control inputs let you connect up to two additional external pedals/switches. To further extend your control possibilities, you can exploit its MIDI functionality to send MIDI control messages via its MIDI OUT to your external gear and processors, using iRig Stomp I/O as a MIDI interface or as a stand-alone controller (even without a device).
Seamless software integration
iRig Stomp I/O is designed to seamlessly integrate with AmpliTube for Mac/PC and iOS as well as with VocaLive for iOS, for full-blown performance in the studio and live.
While using AmpliTube or VocaLive with iPhone, iPad, Mac, PC and PC tablets like Microsoft® Surface, you can easily browse your tone presets, preset banks, control wah processors in real time using the integrated expression pedal, as well as quickly access useful functions like the Looper, the Tuner, and more.
iRig Stomp I/O gives you the unique advantage to have the very same sound on stage as in the studio, with full preset portability.
Features
- USB Pedalboard controller/audio interface for Mac/PC and iOS (MFi certified)
- Four onboard switches, expression pedal with optical switch
- 96kHz/24-bit built-in high-quality audio interface with input gain and volume control
- Hi-Z/Mic/Line Neutrik® combo input, balanced stereo, and headphone output
- Class A preamp with +48V phantom power for condenser microphones
- In/out LED bar VU-Meters
- MIDI in/out with two additional 1/4″ switch/pedal controller inputs
- Integrated device bay for easy positioning of iPhone, iPad or Microsoft Surface
- Over $/€800 of included software and apps: AmpliTube 4 Deluxe, T-RackS processors (White 2A, Black 76, VC-670, EQP-1A), Mic Room and Ableton® Live 10 Lite™ for Mac/PC, AmpliTube/AmpliTube Acoustic iOS, VocaLive iOS and Mic Room for iOS
- Seamless, plug and play integration with AmpliTube (iOS/Mac/PC) and VocaLive (iOS)
- When used with iPhone and iPad it charges your device while you play
- Can also work as a standalone MIDI foot controller, without a device or computer
- Road-ready, rugged metal construction – can be carried anywhere
- Ideal for both studio and live use
- Optimal for guitar and bass players, singers, and vocalists
- Includes Mini-DIN/Lightning and USB-B/USB-A cable
- Designed and made in Italy
- Custom ASIO driver for superior performance on Windows machines
Specs
iRig Stomp I/O Specifications
Common
- Conversion: 24-bit A/D, 24-bit D/A
- Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
- Power: USB bus powered (when used with a computer) or DC IN
- Device Connection: USB B-Type and Mini-DIN
- Enclosure: metal sheet
Microphone Input
- Connector: balanced female 3-pin XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
- Microphone Input Level: from 6 mVpp to 1.4 Vpp
- Microphone Input Impedance: approx 2 kOhms
- Gain Range: approx 48 dB
- Phantom Power: +48V ± 4V
- Frequency Response: 20 Hz – 20kHz +/-1.5dB
- Input Noise: -103 dB(A), -97 dB RMS
Instrument Input
- Connector: unbalanced, Hi-Z, TS 1/4″ Jack. Tip: signal / Shield: ground
- Instrument Input Level: from 30mVpp to 6.9Vpp
- Instrument Input Impedance: 1MOhms
- Gain Range: approx 27dB
- Frequency response: 20 Hz – 20kHz +/-1.5dB
- Input Noise: -103 dB(A), -97 dB RMS
Stereo Headphone Output
- Connector: 1/8″ TRS Jack. Tip: right / Ring: left / Shield: ground
- Headphone Level control: numbered thumbwheel
- Headphone Output Power: 100mW into 50Ohms
Stereo Line Output
- Connector: 2x balanced female 1/4″ TRS Jack. Tip: hot / Ring: cold / Shield: ground
- Maximum Output Level: +16 dBu into 600 Ohms balanced load
- Output Impedance: 150 Ohms balanced
- Floating Balanced Outputs
MIDI Input/Output
- Connector: 2x 5-pin DIN

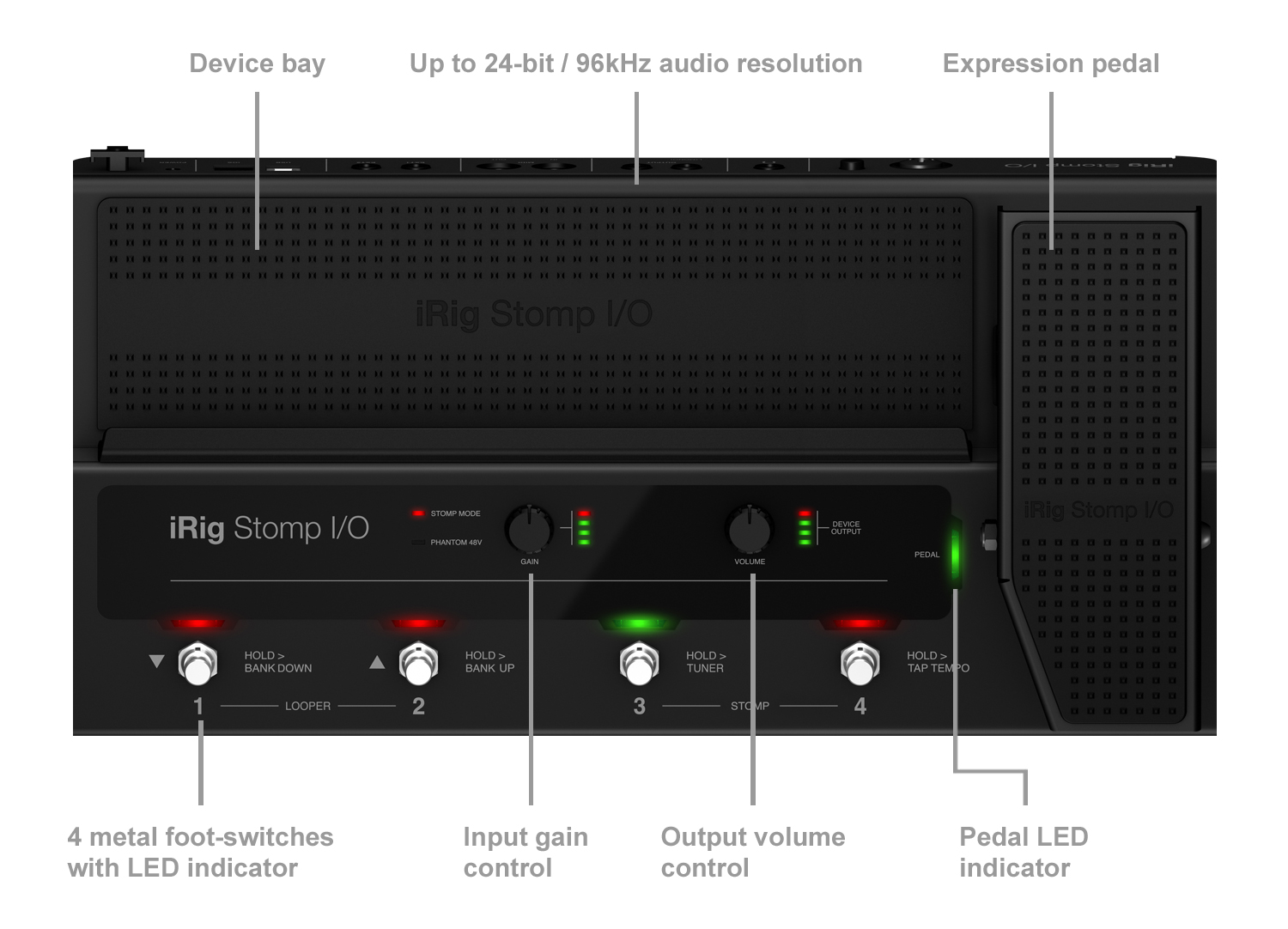

Connections and Controls
Top Panel
- Four metal foot-switches with one indication LED each, dual color
- Two analog potentiometers for Input GAIN and output VOLUME
- “Stomp MODE” LED
- “Phantom 48V” LED
- “PEDAL” LED
- 4 segments mono input level meter (peak)
- 4 segments device output meter
- Continuous pedal (expression pedal) with virtual switch at the top of its travel
Rear Panel
- Neutrik Combo socket for MIC input and Instrument input (auto selecting)
- +48V phantom power switch
- 1/4″ headphones output
-
Additional information
Weight 0.00000000 kg
